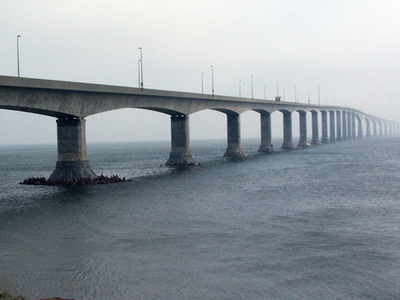

Confederation Bridge

The Confederation Bridge  is a bridge spanning the Abegweit Passage of Northumberland Strait, linking Prince Edward Island with mainland New Brunswick, Canada. It was commonly referred to as the "Fixed Link" by residents of Prince Edward Island prior to its official naming. Construction took place from the autumn of 1993 to the spring of 1997, costing C$1.3 billion. The 12.9-kilometre (8 mi) long bridge opened on 31 May 1997.

The bridge is a two-lane highway toll bridge that carries the Trans-Canada Highway between Borden-Carleton, Prince Edward Island (at Route 1) and Cape Jourimain, New Brunswick (at Route 16).It is a multi-span post-tensioned concrete box girder structure. Most of the curved bridge is 40 metres (131 ft) above water, and it contains a 60 m (197 ft) high navigation span to permit ship traffic. The bridge rests on 62 piers, of which the 44 main piers are 250 m (820 ft) apart. The bridge is 11 m (36 ft) wide.The speed limit on the bridge is 80 kilometres per hour (50 mph). It takes about 10 minutes to cross the bridge.
